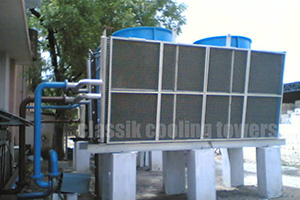

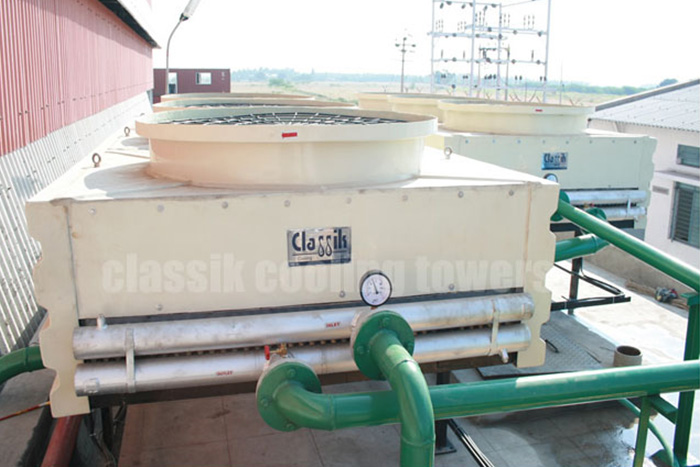

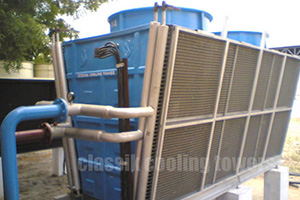

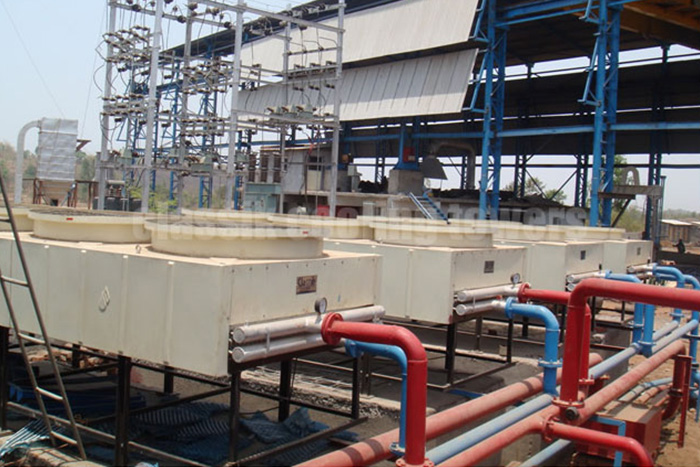

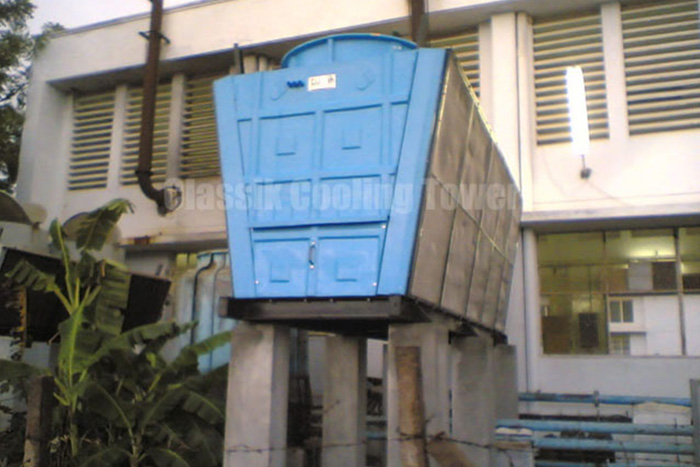

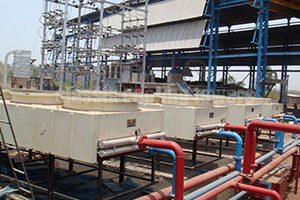

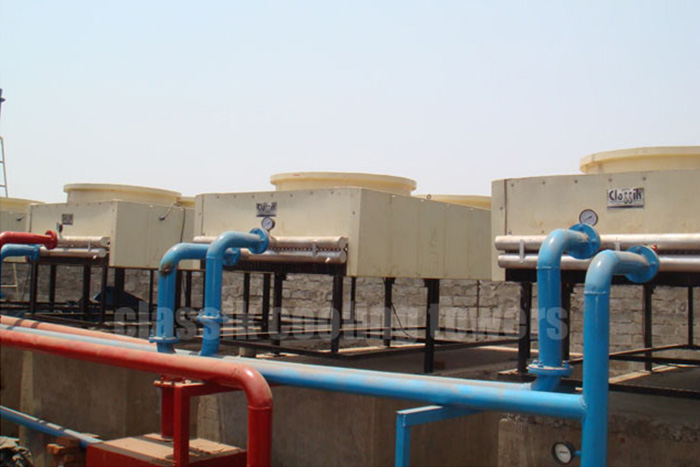

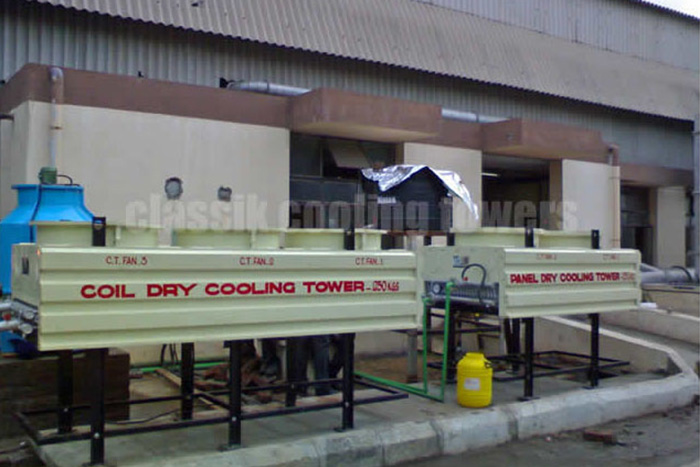

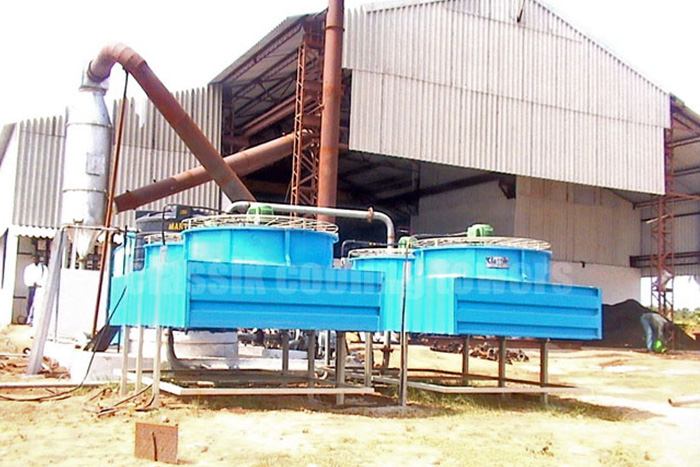

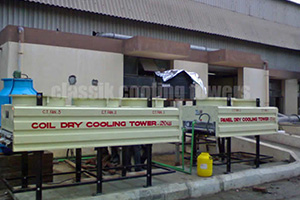

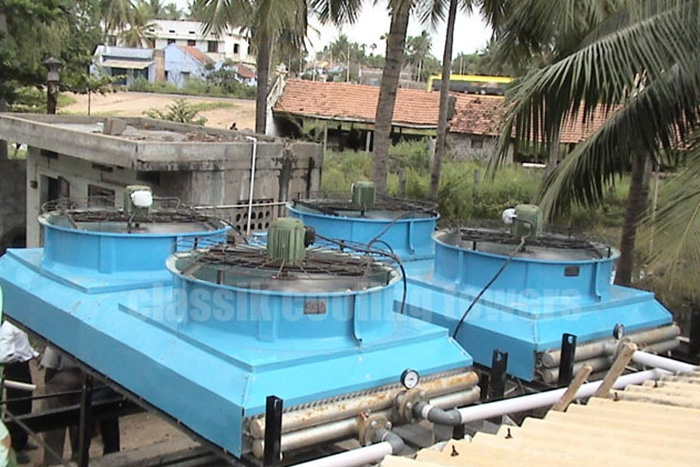

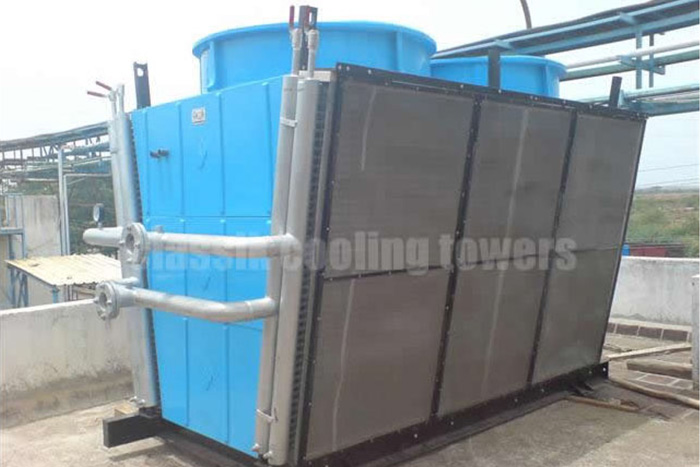

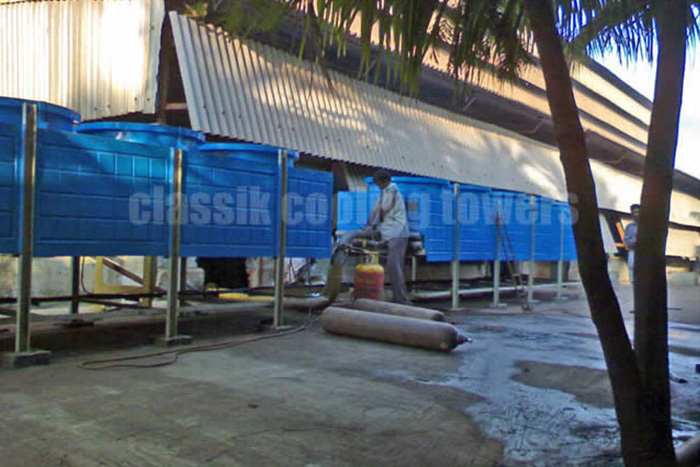

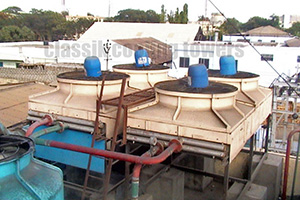

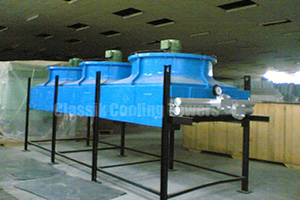

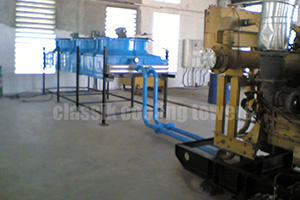

Air-Cooled fluid coolers are produced in our modern plant of International standards, The design. selection, construction of air-cooled fluid coolers are through software which gives us a very accurate data on thermal transfer rate, based on which we manufacture towers.

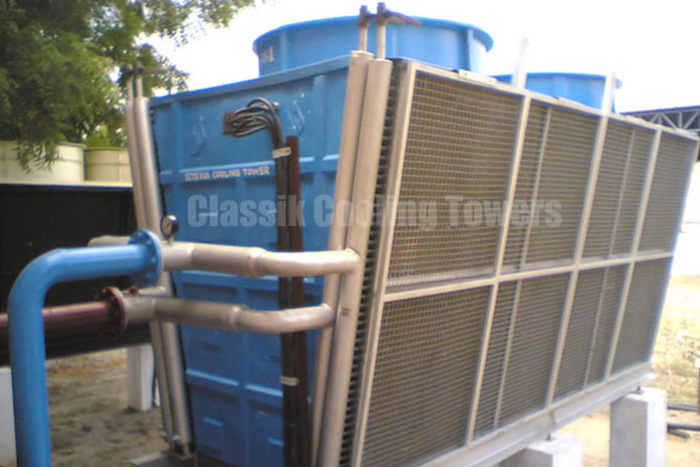

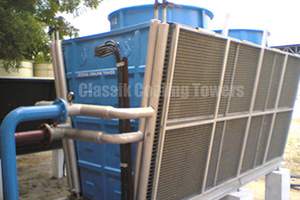

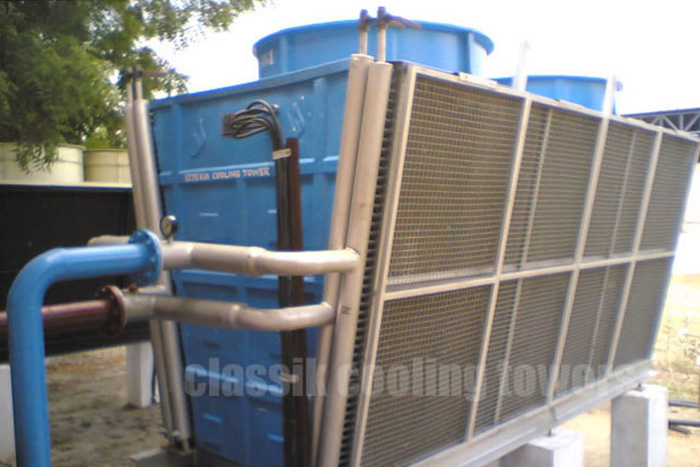

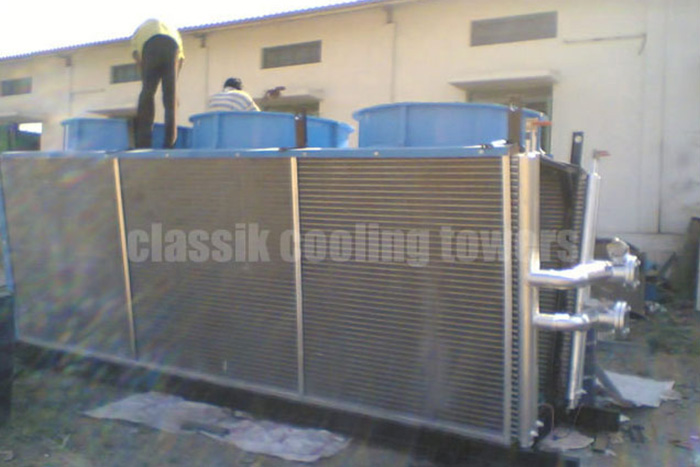

The Tubes and fins are of Copper and Aluminium MOC, respectively. Copper tubes of 5/8″ OD are level wound and the joints are minimized. The return bends are precision die formed to ensure the thickness is maintained with uniformity. All joints are tested for pressure and leak.

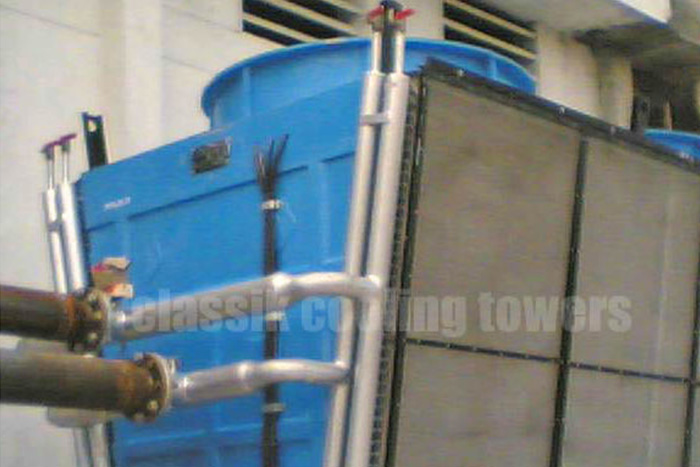

The headers (Inlet & Outlet) are of heavy class steel and the brazed connections are strengthen for long lasting.

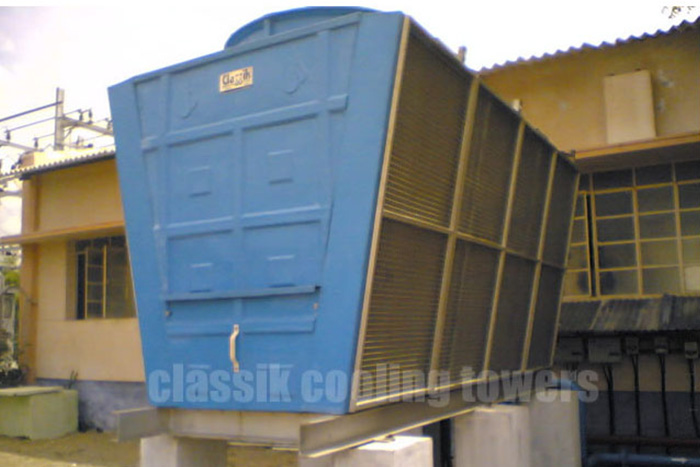

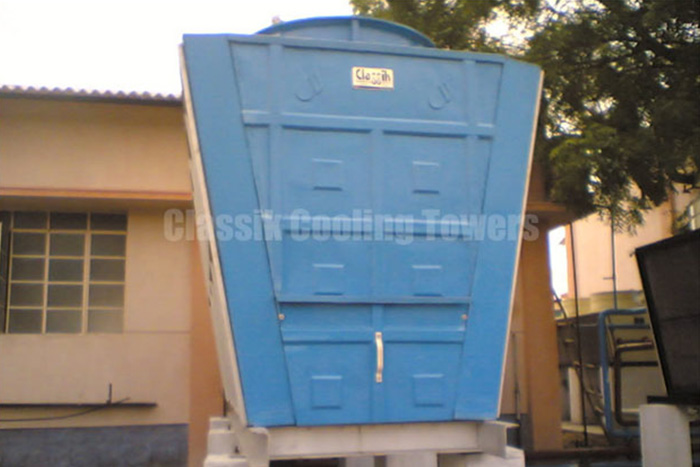

All structural are of HDG Steel and casings in FRP to ensure rust prevention and durability. The water duty coil are provided with suitable vent connections at the highest point and drain connection at the lowest point.
The motors are of the ‘F’ class type, IP-55 protected and specially designed for outdoor applications. Fans are of the axial flow type, driven by motor.
The fans are of aluminium die cast with adjustable pitch and are individually tested for different flow rates. They are all dynamically balanced. Since, the complete fan is of Aluminium Alloy / Plastic it does not corrode when used in out door applications.
